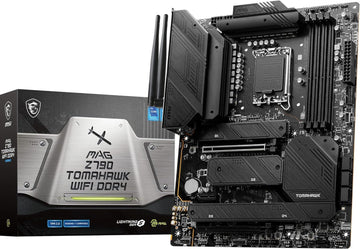

MSI MAG Z790 Tomahawk WiFi LGA 1700 ATX Motherboard

MSI MAG MAG Z790 TOMAHAWK WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 7 x SATA Interfaces



MSI MAG MAG Z790 TOMAHAWK WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 7 x SATA Interfaces

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM HeatsinkThe VRM heatsink covers the upperMOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Features

Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 7200+(OC) MHz
Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

With the exception of information relating to Ingram Micro pricing and stock availability, all product information has been provided by the relevant original equipment manufacturer and/or vendor and not Ingram Micro, and Ingram Micro has included it on this Website as a convenience only. The Customer should confirm all product descriptions and specifications with the relevant original equipment manufacturer or vendor before purchase.
Technical Specs
Audio
Audio Channels 7.1
Miscellaneous
Brand Compatibility Intel
Video
Onboard Video CPU Dependent Video
Physical Characteristics
Form Factor ATX
Width 304.8 mm
Depth 243.8 mm
Onboard Interfaces
Number of SATA Interfaces 7
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
Number of M.2 Interfaces 4
I/O Controller
RAID Levels 1
10
5
0
Controller Type Serial ATA/600
RAID Supported Yes
Network & Communication
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard Bluetooth 5.3
2.5Gigabit Ethernet Yes
Memory
Maximum Memory Supported 128 GB
Memory Technology DDR5 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Memory Speed Supported 6600 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6800 MHz
7000 MHz
7200 MHz
4800 MHz
6400 MHz
6200 MHz
6000 MHz
I/O Expansions
Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
PCI Express Standard PCI Express 5.0
PCI Express 4.0
PCI Express 3.0
Total Number of PCI Express Slots 3
General Information
Product Type Gaming Desktop Motherboard
Manufacturer Part Number MAG Z790 TOMAHAWK WIFI
Manufacturer Website Address http://au.msi.com
Manufacturer MSI
Product Model MAG Z790 TOMAHAWK WIFI
Product Name MAG Z790 TOMAHAWK WIFI Gaming Desktop Motherboard
Product Line MAG
Brand Name MSI
Interfaces/Ports
S/PDIF Yes
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 10
Number of USB 3.2 Gen 2 Type-C Ports 1
Number of USB 3.2 Gen 1 Type-A Ports 4
Number of USB 3.2 Gen 2 Type-A Ports 4
Processor & Chipset
Processor Supported Pentium Gold
Core
Celeron
Total Processor Supported 1
Processor Socket Socket LGA-1700
Chipset Manufacturer Intel
Chipset Model Z790
Processor Generation Supported 13th Gen
12th Gen
12th Gen
13th Gen
